These are a series of Google Sketch-up models I created for a project in my Principles of Town Design class. Some of the buildings are based on real buildings in South Portland, others are more generic. These files are a work in progress; I didn’t pay close attention to the small details as I was under pressure to meet a deadline. I’ve been working on these models when I can find the time, but it’s usually hard to find the time.

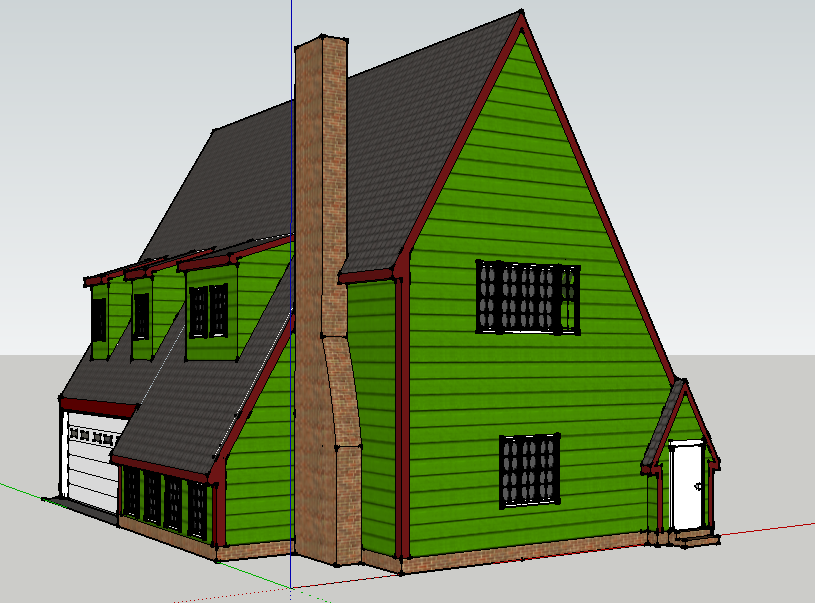

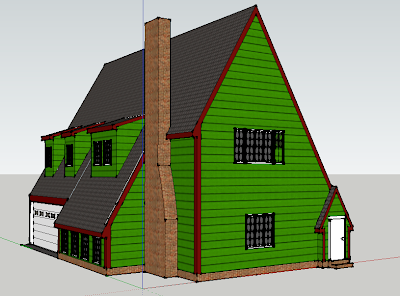

Cape with Gambrel Dormer

Source: City of South Portland

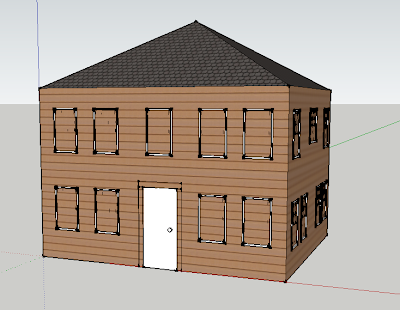

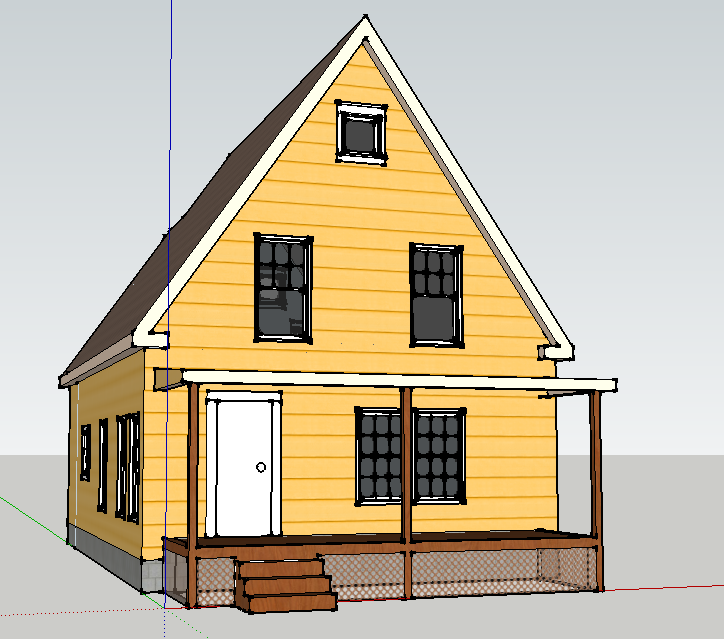

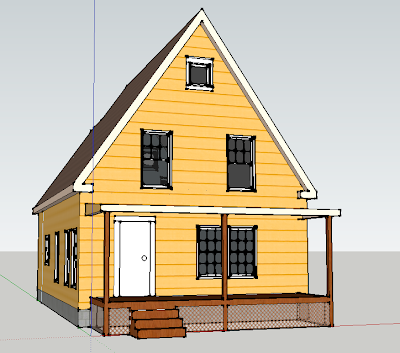

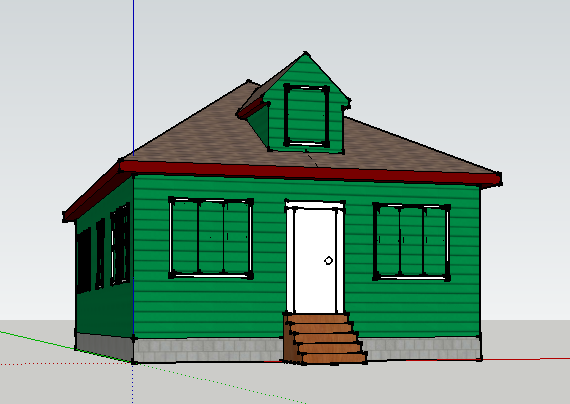

1920s Cottage with Hip Roof

Source: City of South Portland

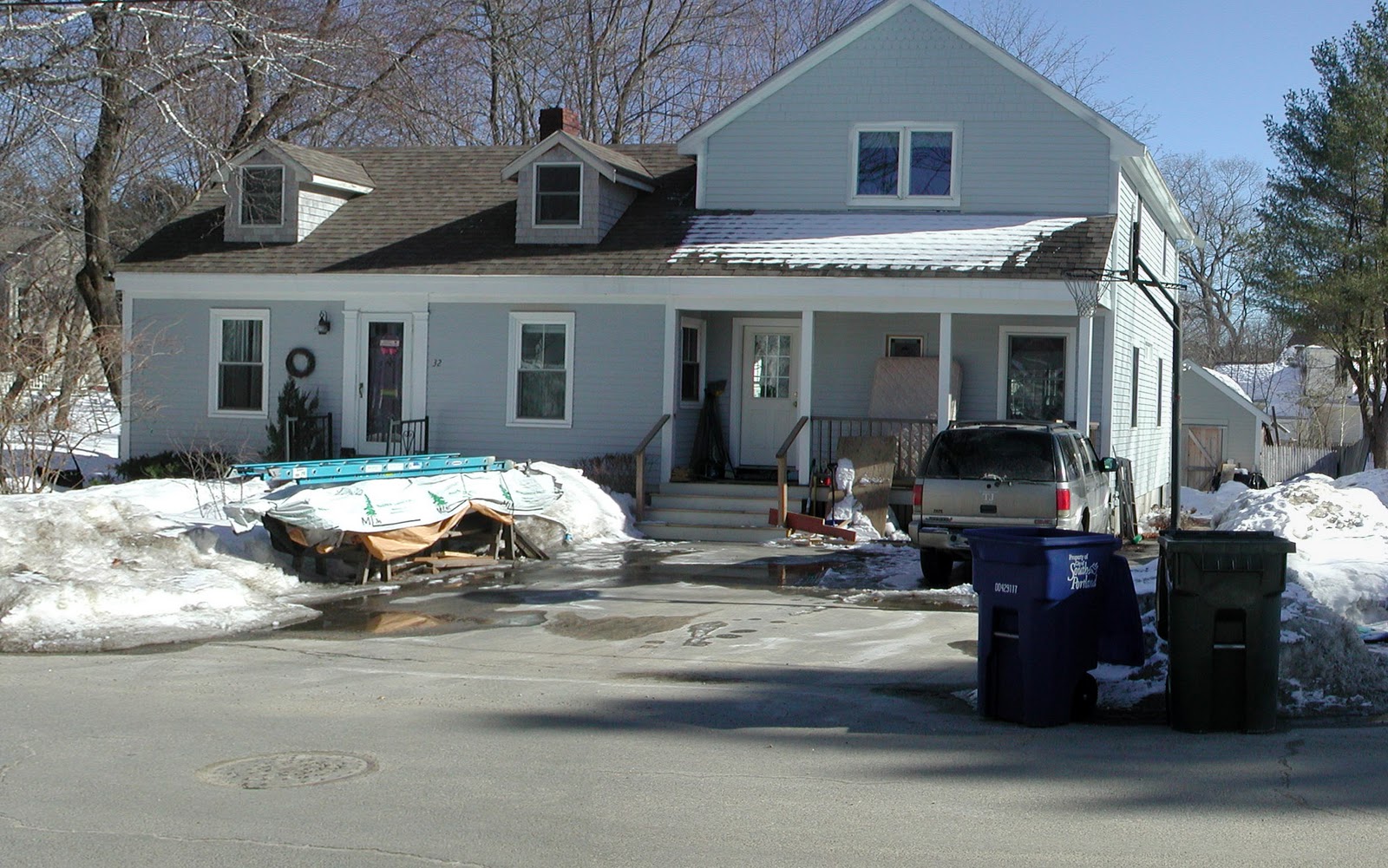

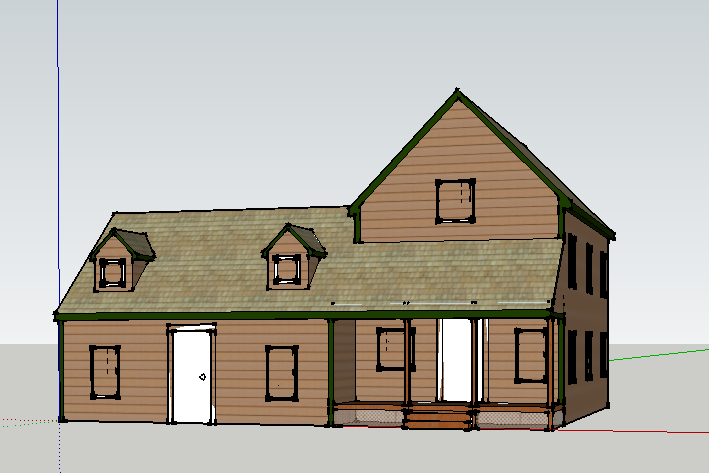

Cape with Addition

Source: City of South Portland

Source: City of South Portland

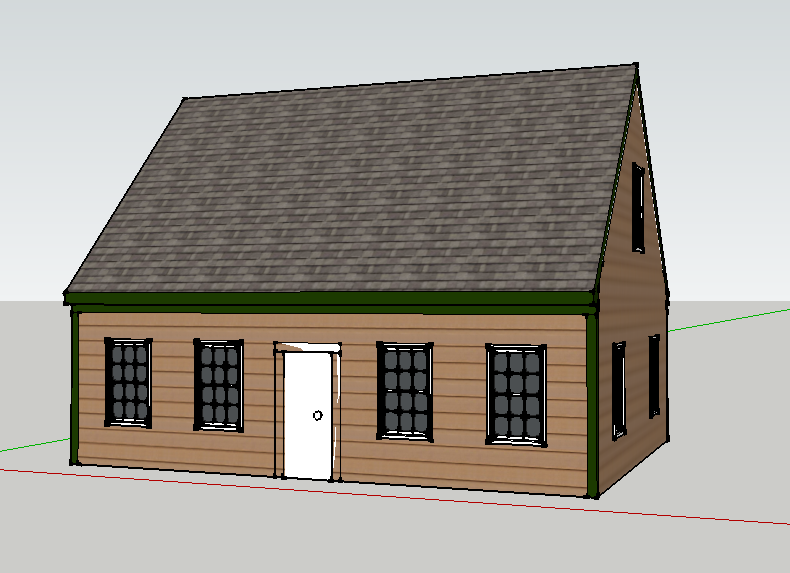

Cape Cod

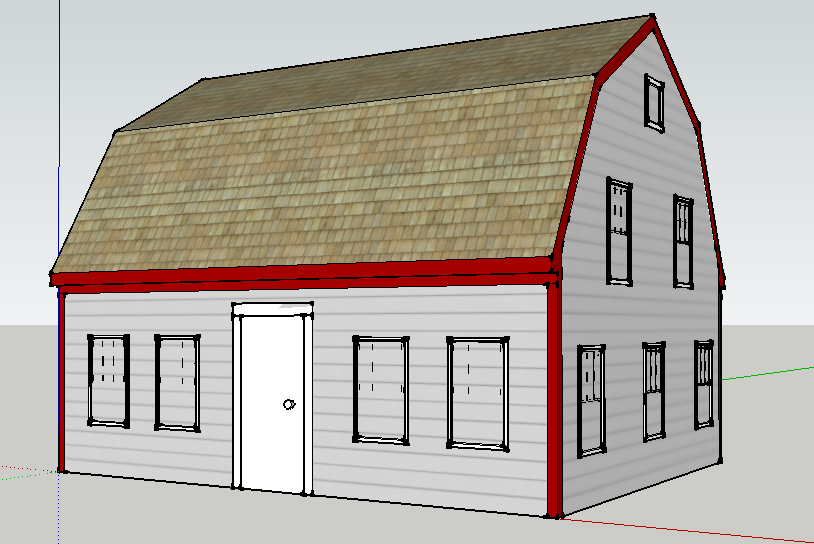

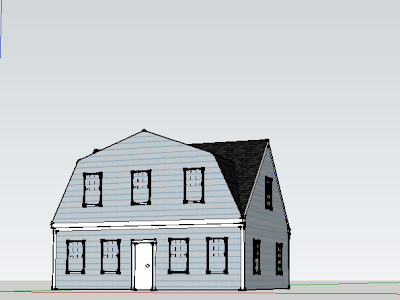

Cape with Gambrel Roof

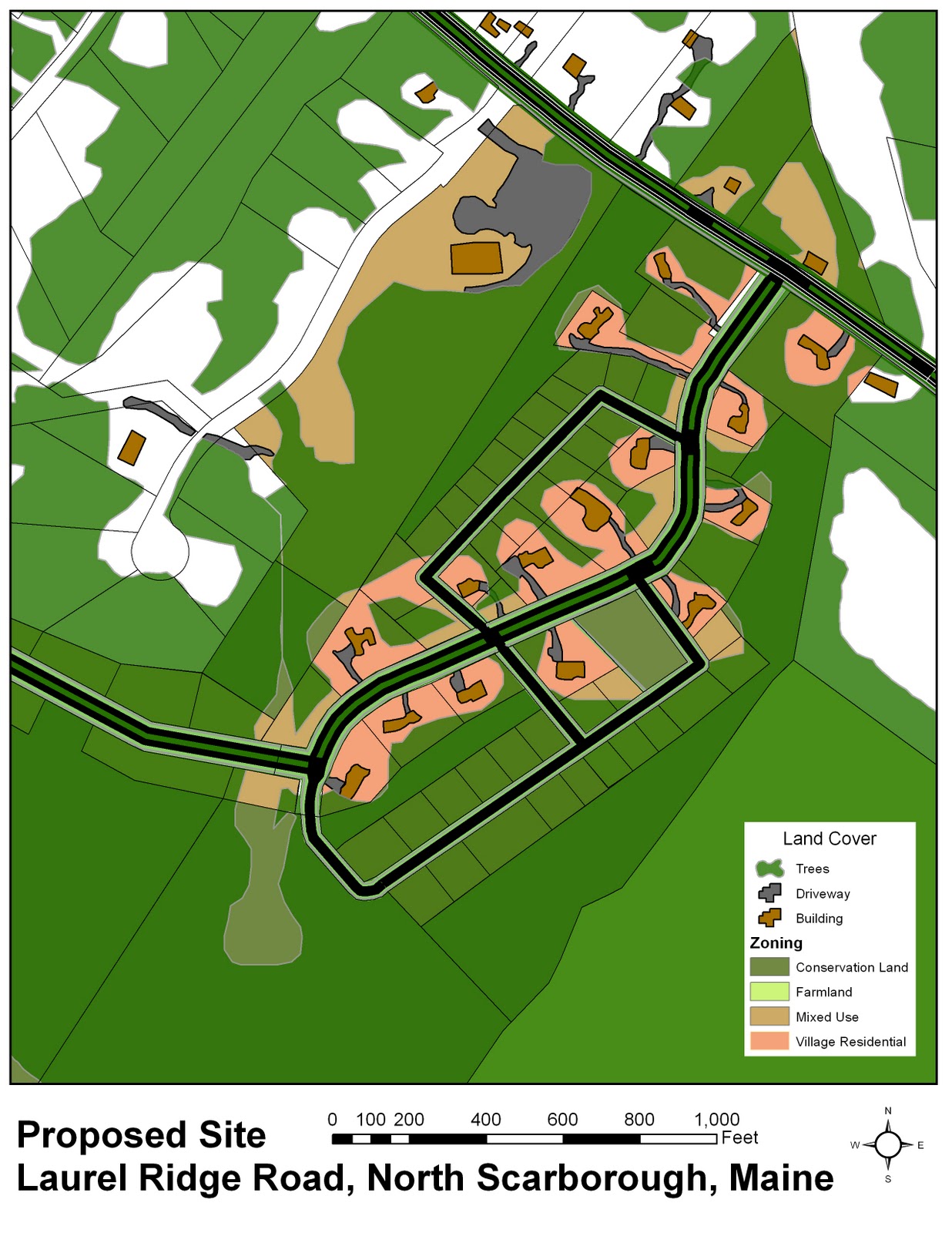

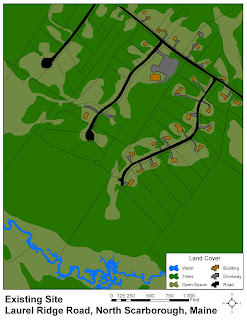

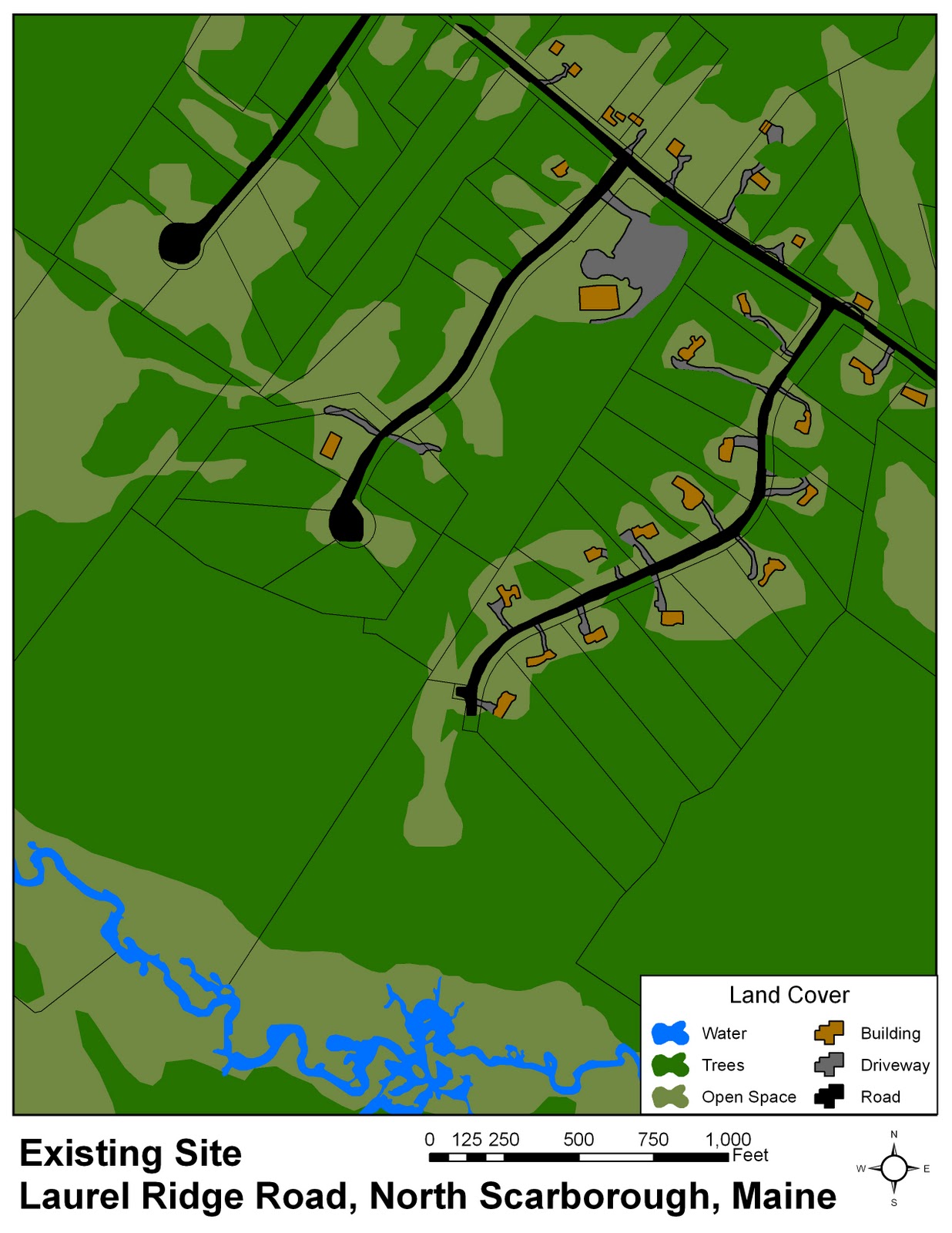

I used these buildings to improve the design of a neighborhood in Scarborough. Here is the existing layout of the neighborhood next to my proposed redevelopment plan.

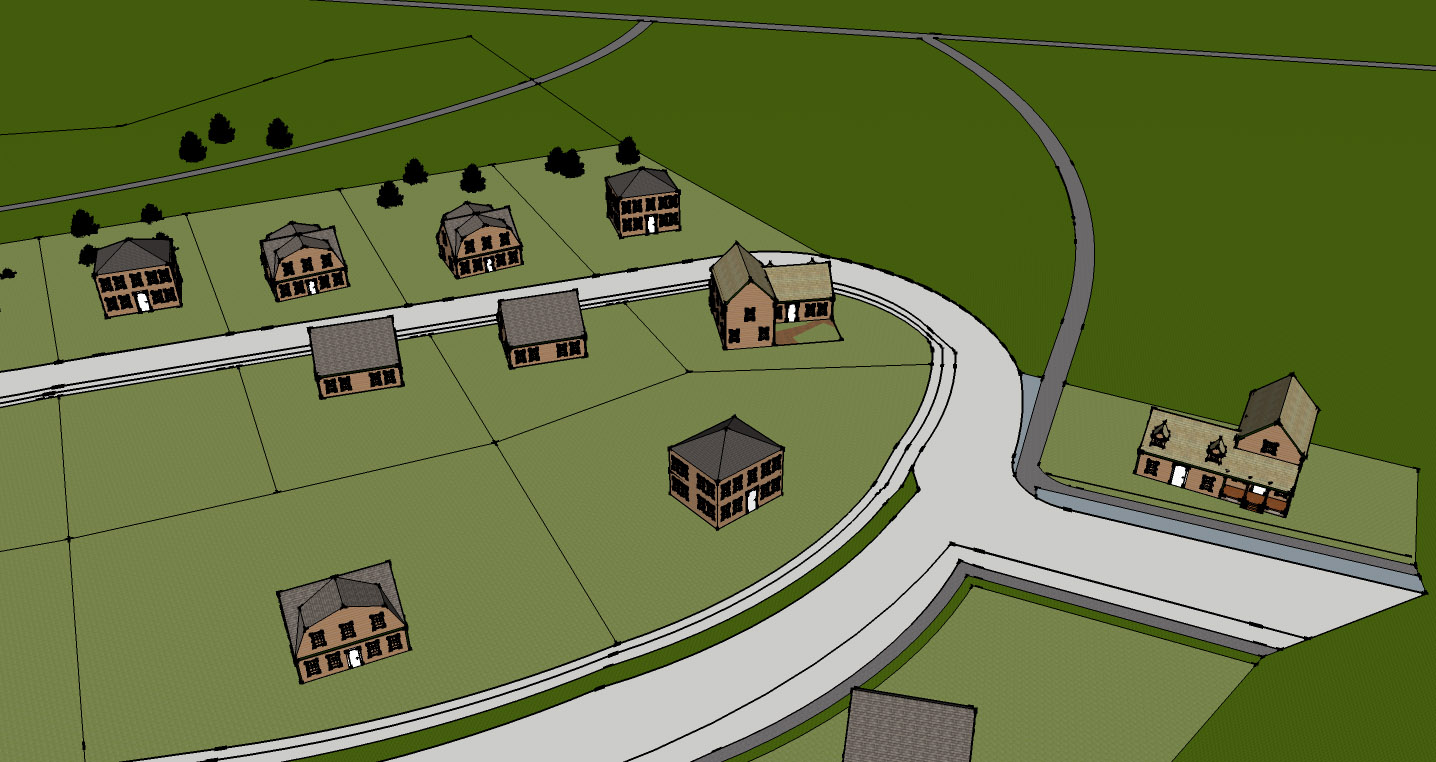

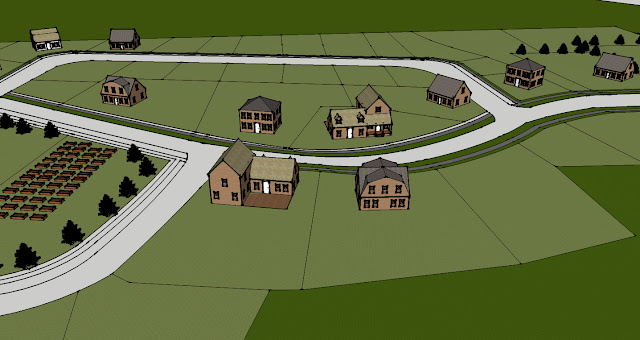

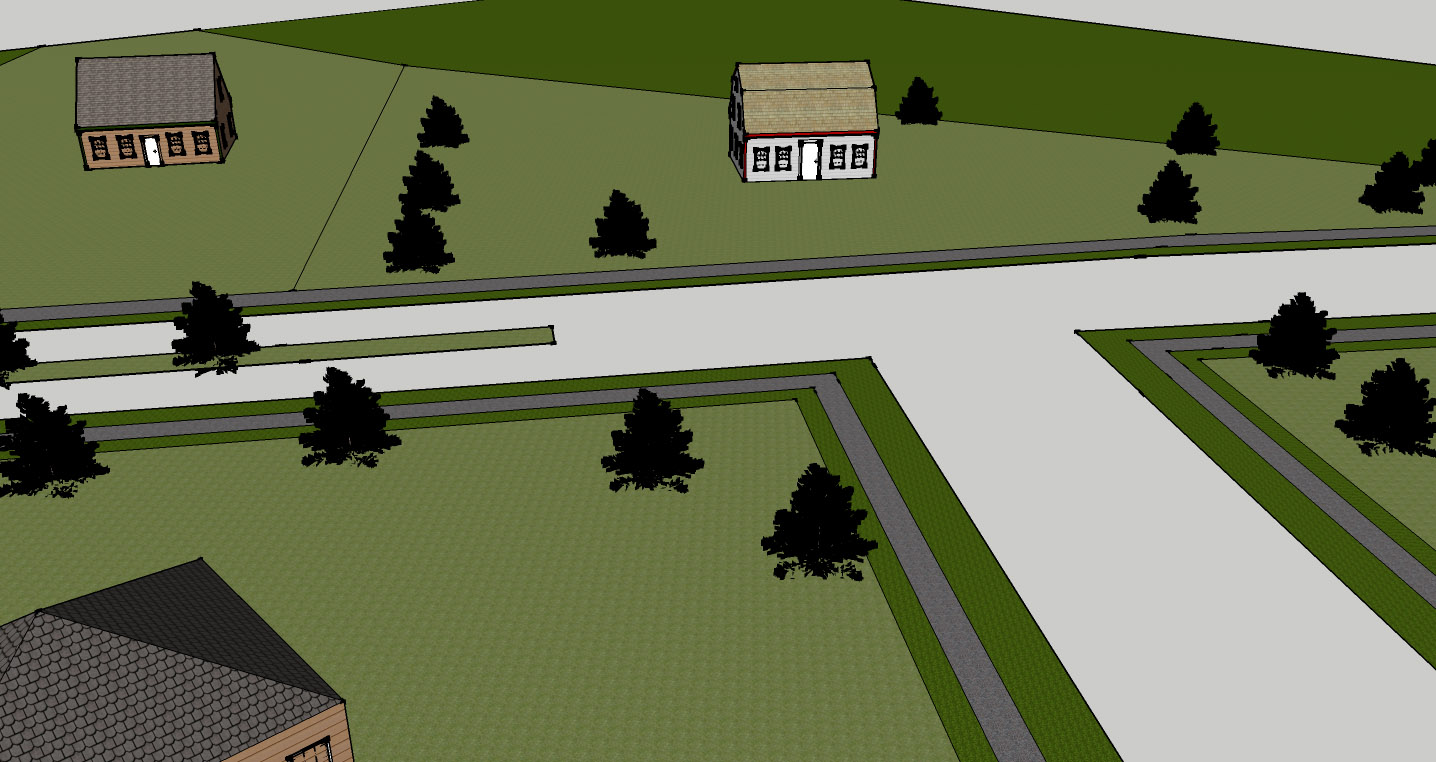

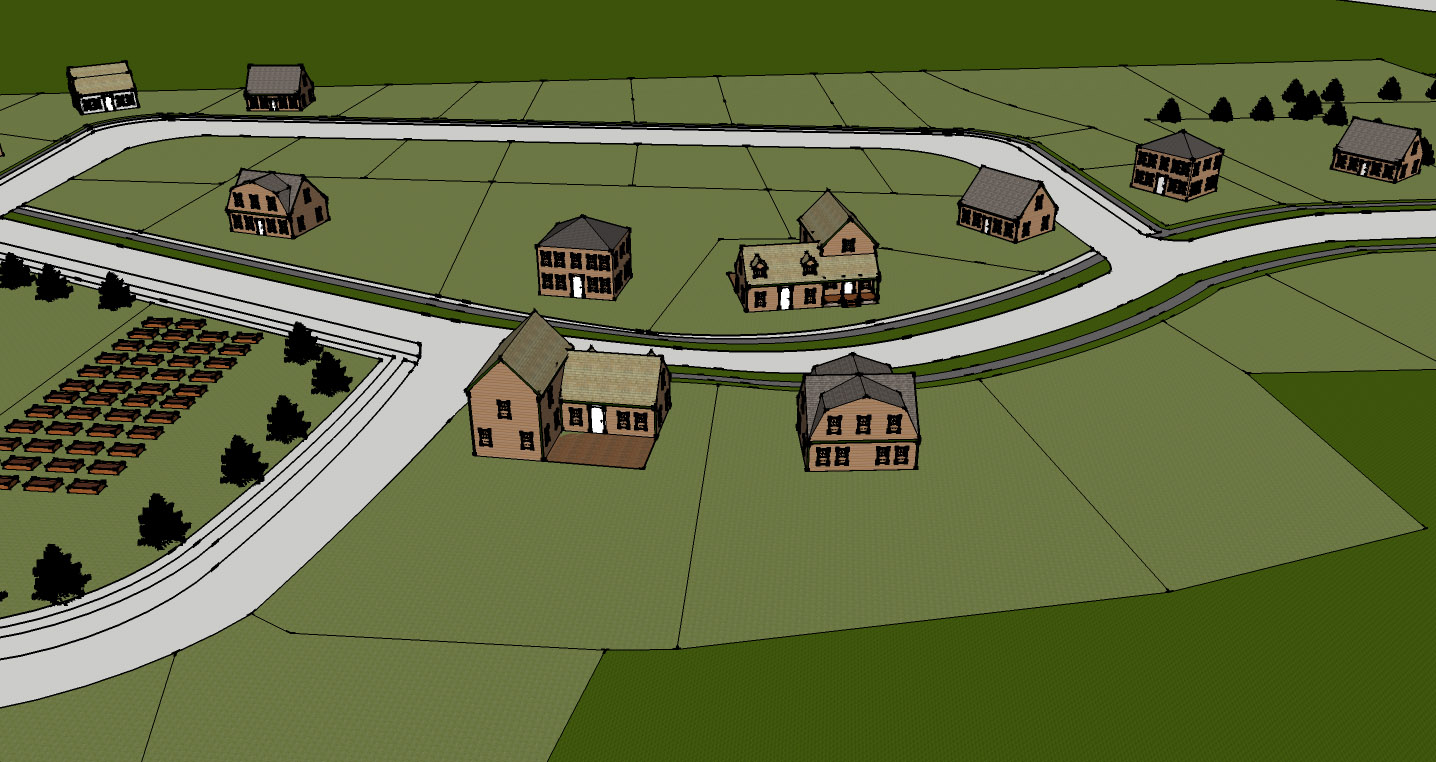

Here are some screenshots of my proposal in Google Sketch-up. This is still a work in progress. You are free to continue my work, or use these models for your own work (Creative Commons, Attribution-Non Commercial). Just a note – I have hidden the trees shown in the below screenshots because Sketch-up really bogs down when they are visible.

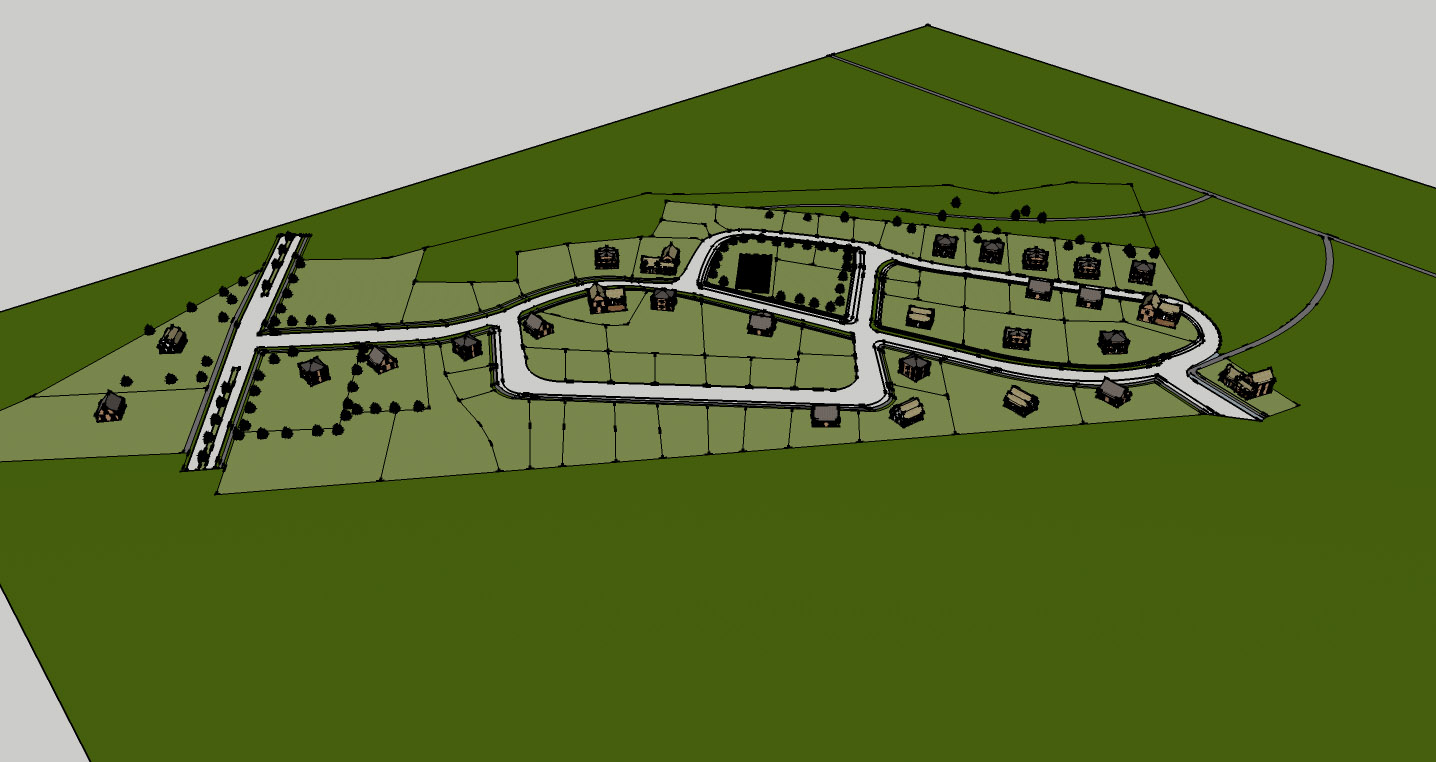

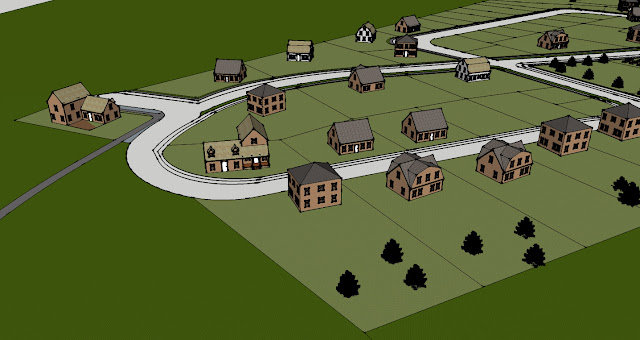

Overview of the Site Looking Southeast.

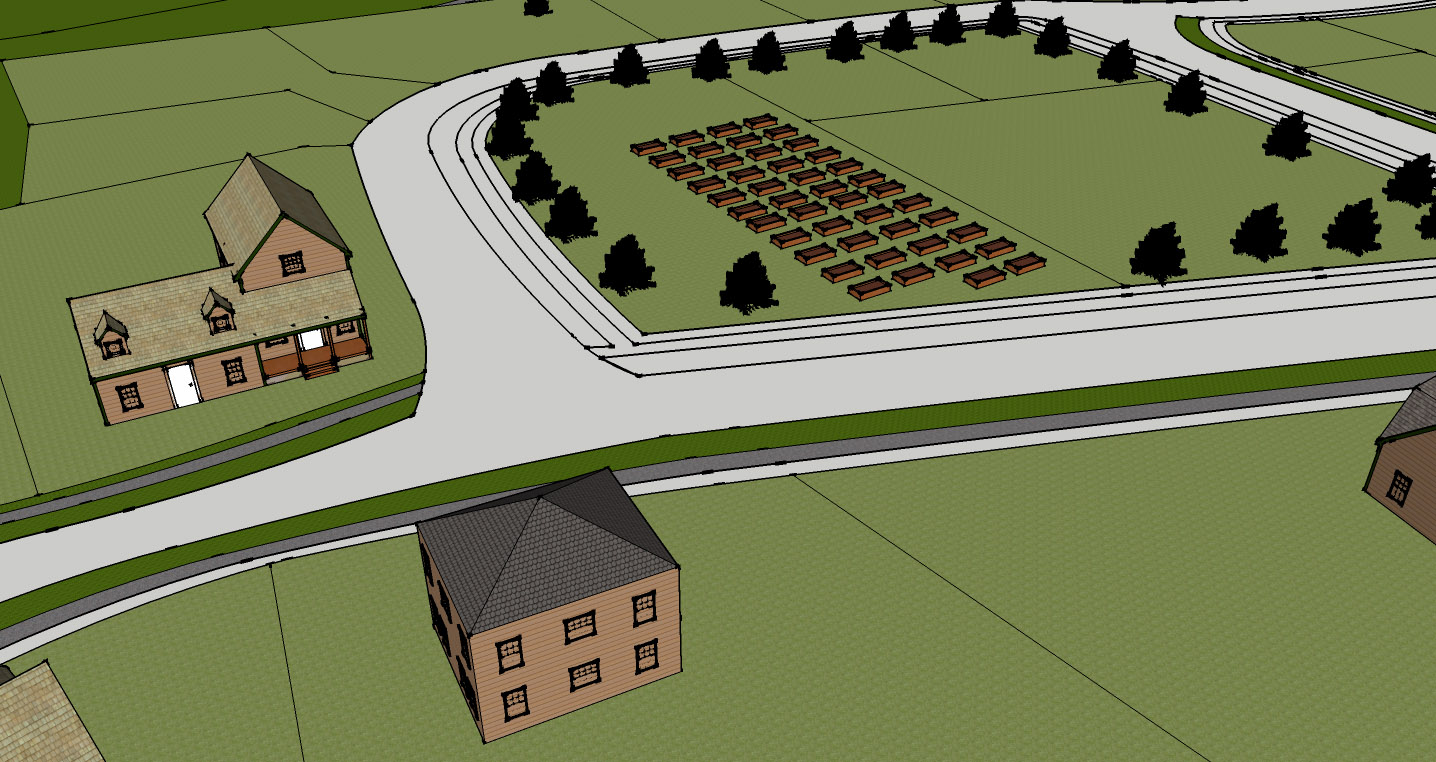

Community garden plots in village square
